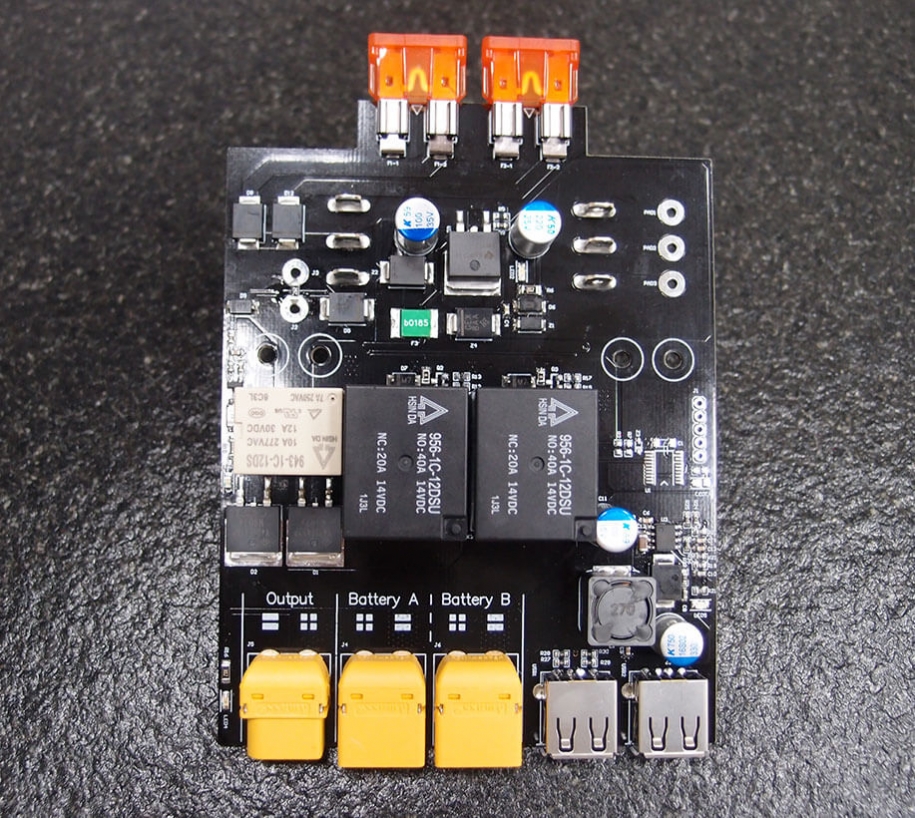

Power Control Unit
Input
  • Main Power Port(Vin) x2
    Lithium-ion Battery 4S(16.8V) x 2
    Max. Vin = 20V
  • Charging Port x1
Output
  • Main Output x 1 (Vout = Vin)
  • USB Power Supply 5V 3A x 2
Protection
  • Surge Voltage Protection 22V
  • Over Current Protection 40A with Blade Fuse (per each Port of Battery Input)
Functions
  • Spare Switch x1
  • Main Power Switch ON/OFF
  • Auto Charging Detection and Switch into Charging Mode (Switch OFF Main Output Port but maintain USB Supply)
